Loadcell kiểu trụ lỗ 2 đầu Dacell TXG-K100

Ứng dụng : trong phân tích phân bổ trọng lượng.
Trọng tải (RC): 1tf, 2tf, 3tf, 1kgf, 2kgf, 5kgf, 10kgf, 20kgf, 50kgf, 100kgf
Điện áp ra định mức (RO): 0.7mV/V to 1.2mV/V

0 đ

Specifications	TXH	TXM	TXG
Rated capacity(R.C.)	1tf, 2tf, 3tf, 5tf, 10tf, 20tf	100kgf, 200kgf, 500kgf, 1tf, 2tf, 3tf, 5tf, 10tf, 20tf	100kgf, 200kgf, 500kgf, 1tf, 2tf, 3tf, 5tf, 10tf, 20tf, 50tf, 100tf
Rated output(R.O.)	2.0mV/V±0.1%	2.0mV/V±0.1% (50tf~500tf 1.5mV/V)
Nonlinearity	0.02% of R.O.	0.05% of R.O.	0.1% of R.O.
Hysteresis
Repeatability
Zero balance	±1% of R.O.
Temperature effect, on rated output	0.03% of LOAD/10℃		0.1% of LOAD/10℃
Temperature effect, on zero balance	0.03% of R.O./10℃		0.1% of R.O./10℃
Temperature range, compensated	-10~60℃
Temperature range, safe	-20~80℃
Terminal resistance input	350±5Ω
Terminal resistance output	350±5Ω
Insulation resistance bridge/case	5000㏁
Excitation recommended	10V
Safe overload	150%
Cable length	Φ7.5mm 4core,3m

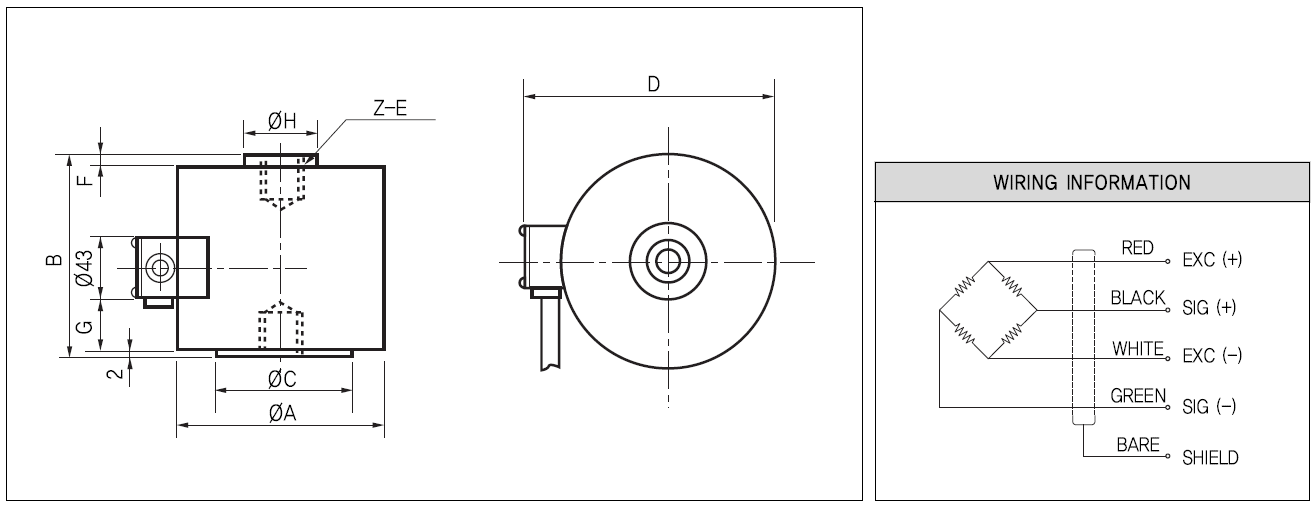

Capacity	ΦA	B	ΦC	D	E	F	G	ΦH	Weight(kg)
100kgf (980.7N)	88	107	50	118	M12×1.25 DP15	4	25	24	3
200kgf (1.961KN)	88	107	50	118	M12×1.25 DP15	4	25	24
500kgf (4.903KN)	88	107	50	118	M12×1.25 DP15	4	25	24
1tf (9.807KN)	88	107	50	118	M12×1.25 DP15	4	25	24
2tf (19.61KN)	88	150	66	118	M24×2 DP30	5	42	30	5
3tf (29.42KN)	88	150	66	118	M24×2 DP30	5	42	30
5tf (49.03KN)	88	150	66	118	M24×2 DP30	5	42	30
10tf (98.07KN)	137	220	66	167	M39×2 DP50	8	65	62	11
20tf (196.1KN)	137	240	66	167	M50×2 DP65	8	75	62	11
50tf (490.3KN)	213	410	130	245	M76×3 DP115	25	140	116
100tf (980.7KN)	267	500	192	315	M100×3 DP150	25	250	196
